Data Transmission

BT Mesh, Wi-Fi and LoRa technologies for the wireless.

Data Collection

Multiple I/O ports (GPIO/SPI/I2C/UART) to connect to different meters and sensors.

Turnkey Solution (HW/FW/SW)

Support our customers to implement in a short time

How our solution works?

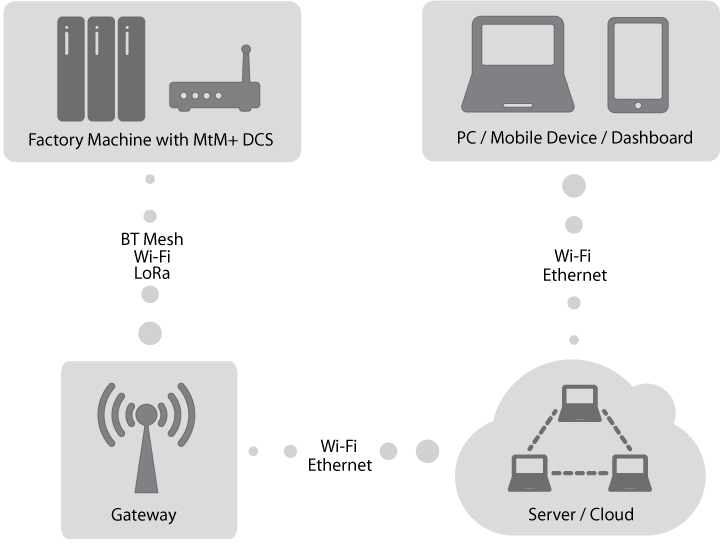

A factory machine is equipped with MtM+ DCS machine where operation data is collected through various sensors. This information is then fed to the server through a gateway where data is monitored and analyzed. The server then can trigger alarms and generate reports to either a PC or mobile device in order to improve operation efficiency.







Read up on our success stories.

Specification

  • Wireless:
    • Proprietary Mesh network using 2.4GHz wireless frequency
  • LED: Power x1, and Output x4 (programmable)
  • LCD Display: 144x64 Dot-Matrix LCD
  • Connectivity Options: : Wi-Fi (optional) and LoRa (optional)
  • Physical Button: Reset
  • Power: DC Power 12VDC (+/-10%), 3A
  • I/O Ports:
    • GPIO: ADC 10P x1, PWM 4P x1 and GPIO 16P x1
    • SPI: SPI x16
    • I2C: 2.0mm 4P x2
    • UART: USB type-B x1
    • RS232/RS485: 2P Euroblock x1
  • Dimension: 150(L) x 100(W) x 55(H) mm

Applications

IoT

  • Infrastructure and Environment Monitoring
    • Temperature / Humidity / Smoke / Vibration / Sound level / Air pressure / Air quality
    • Real-time environmental monitoring will alert staff what is going out of control or tolerable limits.
  • Preventive and Predictive Maintenance for Machines
    • Complete historical data of key machines for RMA/Service/Support team
    • Alerts for high risk status if the numbers or pattern closing out-of-control
    • Not only preventive but also predictive maintenance through analytic algorithm and big data correlation.
  • Track and Trace
    • Asset Inventory Tracking
    • People Guiding and Tracking
